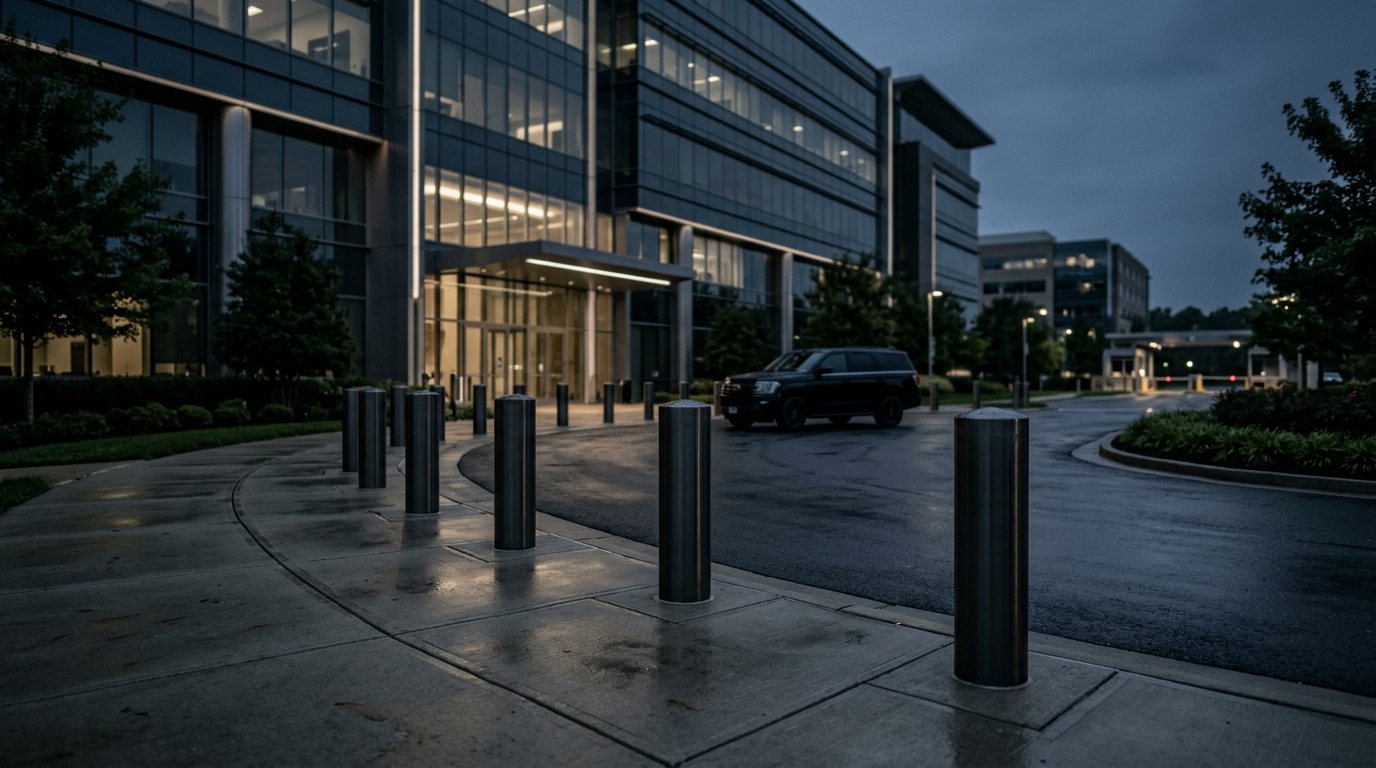

For facility directors and asset managers in Prince William County, protecting property and personnel from vehicle-related threats is a growing consideration. Beyond simple traffic control, security bollards provide a critical layer of physical defense. However, not all bollards are created equal. Understanding the engineering standards that govern their effectiveness is essential for making informed security investments.
Bollards intended to stop a moving vehicle are rated based on their ability to absorb and resist kinetic energy. These ratings provide a verifiable measure of performance, ensuring that a specified barrier can perform as expected during an impact.
The Superseded K-Rating System
For many years, the industry standard was the Department of State (DoS) K-rating. You may still encounter this terminology when reviewing older site plans or product literature. The system was straightforward:
- K4: Certified to stop a 15,000-pound vehicle traveling at 30 mph.
- K8: Certified to stop a 15,000-pound vehicle traveling at 40 mph.
- K12: Certified to stop a 15,000-pound vehicle traveling at 50 mph.
The K-rating system also included a measure of how far the vehicle's cargo bed penetrated past the barrier, but it has since been replaced by a more detailed international standard.
The Current Standard: ASTM F2656
The modern standard for vehicle security barriers is ASTM F2656. This system provides a more granular classification of a barrier's performance. The designation you will most often see looks something like "M30 P1."
First is the vehicle type and speed rating. This is roughly equivalent to the old K-ratings, with "M" designating a medium-duty truck (15,000 lbs):
- M30: Stops a 15,000 lb vehicle at 30 mph.
- M40: Stops a 15,000 lb vehicle at 40 mph.
- M50: Stops a 15,000 lb vehicle at 50 mph.
Other designations exist for smaller cars (C) and heavy goods vehicles (H), but M-ratings are the most common benchmark for commercial applications.
The second part of the rating is the penetration distance, a critical detail for protecting building facades and pedestrian areas. It measures how far the front of the vehicle traveled beyond the bollard line.
- P1: Less than or equal to 1 meter (3.3 feet)
- P2: 1.01 to 7 meters
- P3: 7.01 to 30 meters
- P4: 30.01 meters or more
For protecting storefronts, lobbies, or outdoor seating areas, a P1 rating is paramount. An M50 P4-rated bollard may stop a truck, but if the vehicle travels 100 feet past the barrier, the asset is still destroyed.
Installation is as Critical as the Rating
A certified bollard is only as effective as its installation. A high-strength steel bollard set in a shallow, inadequate concrete footing will fail upon impact. Professional installation according to manufacturer specifications—which often dictate significant excavation depth, sub-grade reinforcement, and specific concrete mixtures—is non-negotiable. The integrity of the entire system depends on the foundation hidden below the surface.
For many Manassas-area businesses, the goal may not be stopping a deliberate, high-speed attack but preventing accidental storefront crashes from errant vehicles in a parking lot. In these cases, lower-rated or even non-rated, but properly installed, steel pipe bollards may suffice. The key is to match the solution to a realistic assessment of the specific location's risk profile.
Executive Note — EGS Analysis Effective tactical architecture extends beyond building aesthetics to include defensive physical measures that protect both assets and people. A misapplication of these measures, such as using non-rated posts where impact-rated bollards are required by the threat profile, can significantly expand an organization's liability footprint in the event of a vehicle-related incident.
Educational Sidebar: Preliminary Vehicle Threat Vector Checklist
Use this simple framework to begin assessing your property's exposure to vehicle-based risks. This is not a substitute for a professional assessment but a starting point for internal discussion.
-
[ ] Identify Critical Assets: Pinpoint the most vulnerable and valuable points on your property's perimeter (e.g., glass-fronted lobbies, outdoor dining areas, pedestrian plazas, ground-floor data closets, critical utility junctions).
-
[ ] Map Approach Paths: Trace the direct lines of approach for vehicles from public roads and parking areas to your identified assets. Note the potential for a vehicle to gain speed.
-
[ ] Measure Standoff Distance: What is the distance from the curb or parking area to the asset itself? A short distance may necessitate higher-rated barriers with a P1 penetration rating.
-
[ ] Review Incident History: Investigate any history of vehicle accidents on or near your property. A pattern of accidents increases the foreseeability of a future incident.
-
[ ] Define the Objective: Is the goal to (a) provide a visual deterrent and guide traffic, (b) prevent accidental, low-speed impacts, or (c) defend against a deliberate, high-speed ramming attempt?
